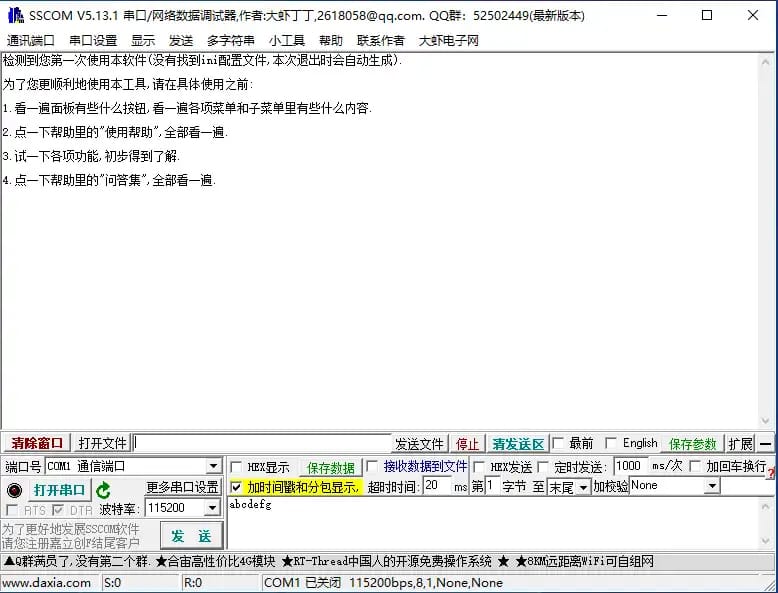

SSCOM V5.13.1 Serial Port Assistant
To streamline the debugging process for developers integrating iBodyinfo BIA modules, we recommend the stable and classic third-party Serial Port Debugging Tool, SSCOM v5.13.1. This guide details its core features, provides usage instructions, and includes a download link to help accelerate your development.
A stable and reliable Serial Port Debugging Tool is an indispensable asset when developing and integrating iBodyinfo BIA measurement modules. Based on its powerful features, excellent stability (low data loss, robust connection), and broad compatibility, we recommend the classic third-party serial terminal software: SSCOM V5.13.1.
Key Feature Highlights
- Multi-Protocol Support: Supports standard serial port communication as well as TCP/IP and UDP network protocols.
- Powerful Data Visualization: Provides smooth data display with minimal data loss. Supports string and hexadecimal (HEX) formats, with options for timestamps and data waveform (oscilloscope) display.
- Flexible Data Transmission: Supports sending data in string or HEX format, with up to 99 predefined data strings. Also features options for adding checksums, escape characters, and timed sending.
- Advanced Functions: Includes a built-in STM32 ISP programming function and supports terminal emulation.
Quick Usage Example
Below is a simple example for sending a command:
- Open the SSCOM software and select your device’s COM port from the “Port No.” dropdown menu.
- Set the correct “Baud Rate” (e.g., 115200).
- Click “Open Port”.
- In the sending area, enter the command you wish to send, for example, a constant current command:codeCode
aa 55 07 01 00 00 c8 - Check the “HEX Send” box, then click the “Send” button. You will see the device’s response in the receiving window.
Download the Tool
SSCOM_V5.13.1.zip
- Version: 5.13.1
- System Requirements: Windows XP / 7 / 10 / 11
- Original Source: This tool was developed by “dxdyy”.
Disclaimer: This is third-party software. iBodyinfo recommends it based on its versatility and stability but is not responsible for its functionality or updates.
